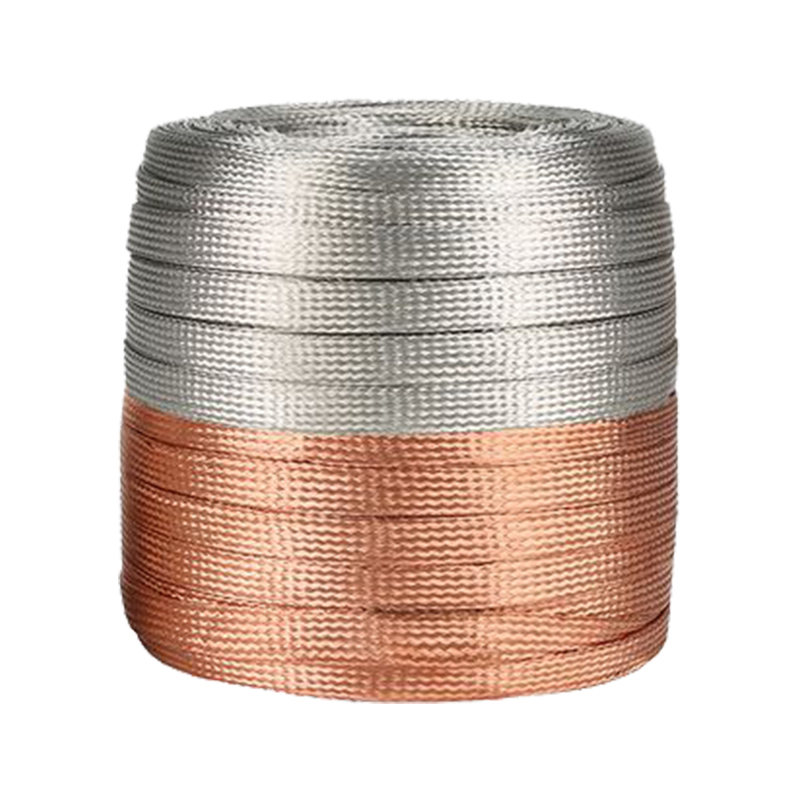

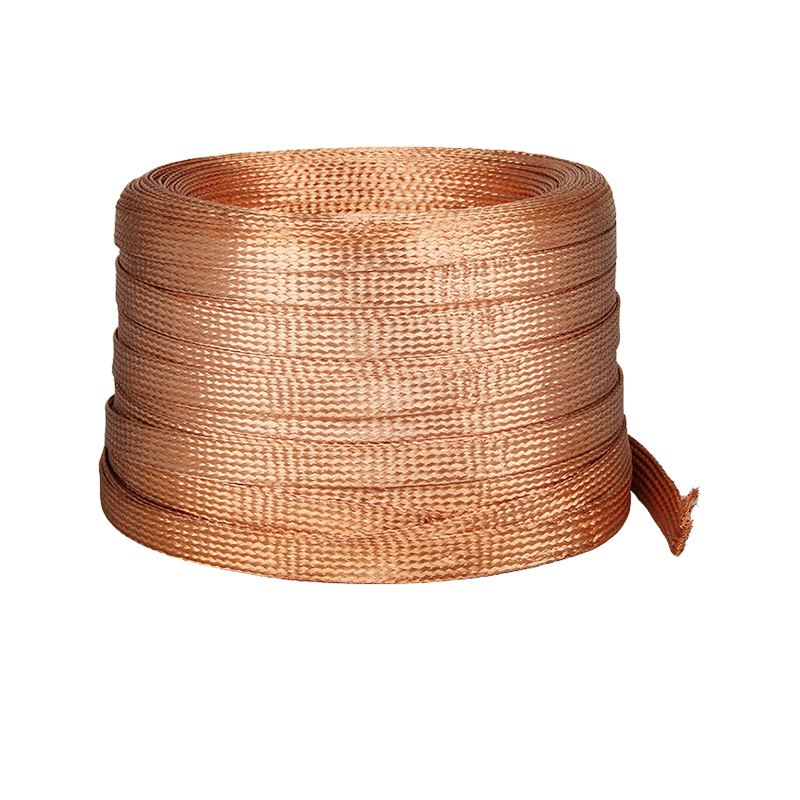

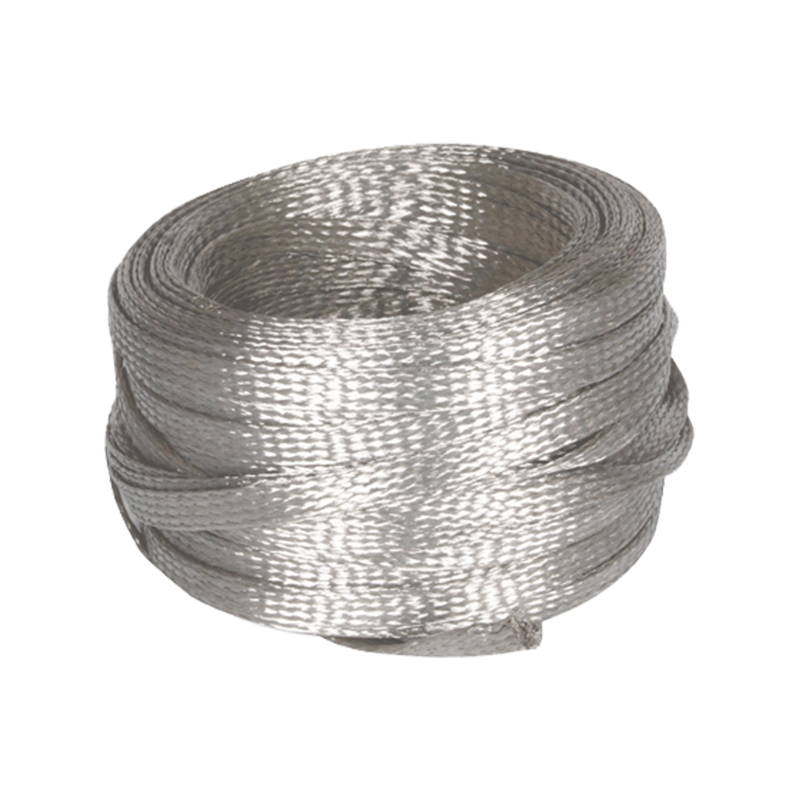

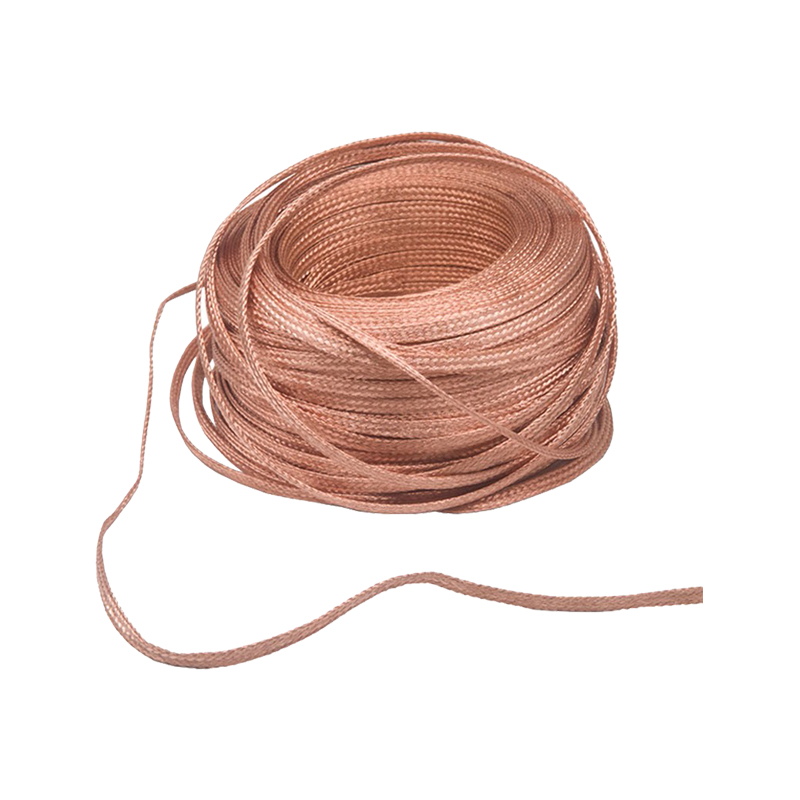

Earthing aeris flexibile COPULATOR

Aeris flexibilia COPULATOR factum est aeris braided filum aut aeris ffoyle, filum diameter est 0,10mm, 0.12mm, 0.02-0.7mm.the et aeris est aurei, aut aeris Tin Tigher. Et uber potest esse late usus est locus ultricies et inpulsa effusio in altus-humilis voltage apparatu, summus humilis voltage switch cabinet, welding apparatus, autocineti, electrica fornacem, virtutis generans exactum.

PREV：Galvanized ferro fistulam
DEINDE：Earthing Zinc ornare ferro per filum

Nobis loquere

Features & Commoda
Index & Specification
relinquere nuntium

Features & commoda

Et Iungo magis flexibile, elastica. Et superficies est Shinny et corrosio resistentia. Longitate, humilis resistentia, summus conductivity et fortis mechanica perficientur.

Data ex aeris braided filum

Nominal sectioni Size (MM2)	Real section Size (MM2)	Structura	Latitudo (M)	Crassities (M)	Ref pondere (KG / km)
Nominal sectioni Size (MM2)	Real section Size (MM2)	Structura	Latitudo (M)	Crassities (M)	Ref pondere (KG / km)
1.5mm2	1.69mm2	XXIV * IV * I / 0.15	4	0.6	15
2mm2	2.12MM2	XXIV * V * I / 0.15	5	0.6	21
2.5mm2	2.54mm2	XXIV * VI * I / 0.15	6	0.7	25.4
4mm2	4.24MM2	XXIV * X * I / 0.15	8	0.8	42
4mm2	3.81MM2	XXXVI * VI * I / 0.15	10	0.7	38
6mm2	6.36mm2	XXXVI * X * I / 0.15	12	0.8	63
8mm2	8.48MM2	XLVIII * X * I / 0.15	13	0.8	85
10mm2	10.17mm2	XLVIII * XII * I / 0.15	15	1	102
10mm2	10.60mm2	XL * XV * I / 0.15	15	1.2	106
12mm2	12.72mm2	XLVIII * XV * I / 0.15	20	1.2	127
16mm2	16.96mm2	XLVIII * XX * I / 0.15	22	1.3	170
20mm2	21.20mm2	XLVIII * XXV * I / 0.15	25	1.4	212
25mm2	25.43mm2	XLVIII * XXX * I / 0.15	30	1.5	254
25mm2	25.43mm2	XLVIII * XV * II / 0.15	20	2.5	254
35MM2	33.91MM2	LXIV * XXX * I / 0.15	40	1.5	340
35MM2	33.91MM2	XLVIII * XX * II / 0.15	25	2.6	340
50MM2	50.86mm2	LXIV * XLV * I / 0.15	50	1.8	510
50MM2	50.86mm2	XLVIII * XXX * II / 0.15	30	3	510
50MM2	50.86mm2	XLVIII * XX * III / 0.15	25	4	510
70mm2	70.65mm2	LXXX * L * I / 0.15	70	2	706
70mm2	67.82mm2	LXIV * XXX * II / 0.15	40	3	680
75mm2	76.30mm2	XLVIII * XXX * III / 0.15	32	4.5	763
100mm2	101.72mm2	XCVI * LX * I / 0.15	100	2	1017
100mm2	101.72mm2	LXIV * XLV * II / 0.15	52	4	1017
100mm2	101.72mm2	XLVIII * XXX * IV / 0.15	35	6	1017
120mm2	118.68mm2	XCVI * LXX * I / 0.15	120	2.5	1190
120mm2	122.91mm2	XLVIII * XXX * IV * IV * XXV I / 0.15	37	8	1230

Superficiem esse stagnum plating ut per petitionem. Et Lug materia et magnitudine potest customized ut per postulationem.
